AL1031-I-O-KNX
| Voltage：KNX-Bus |
| Load：N/A |
| Detection angle：360° |
| Sensing area：4 |
| Detection distance: Tangent radius 5m, Nema: 4x4m, micro action: 4m |
| Mounting height：2.5-4m |
| Sensitivity：ETS adjustable |
| LUX：ETS adjustable |
| Duration time：10S～15min |

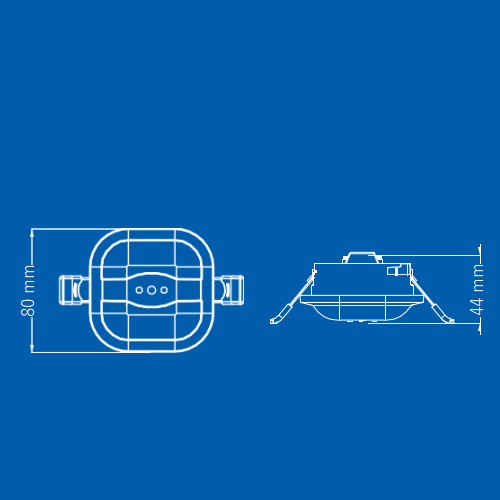

| Dimension：80x80x46mm |
| Cut-out: φ70mm |
| Installation method：Recess mount |
| IP 20 |
